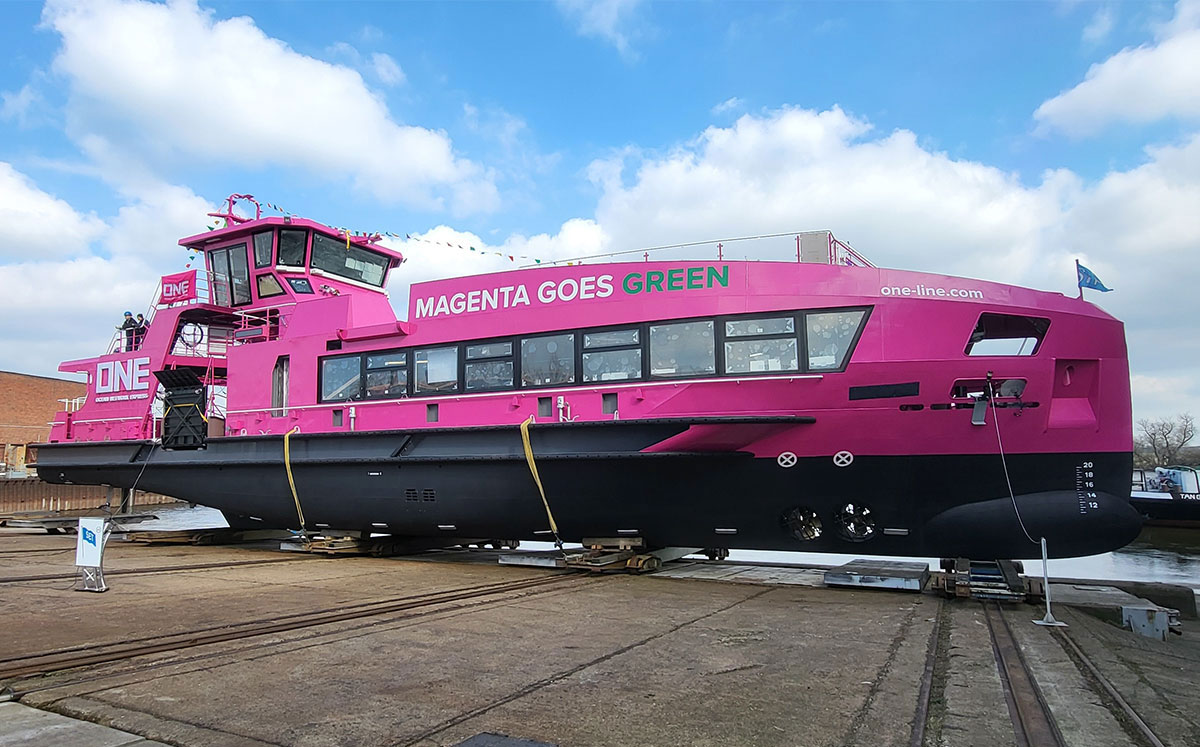

commuter-ferry-4-1st-vessel-before-launching

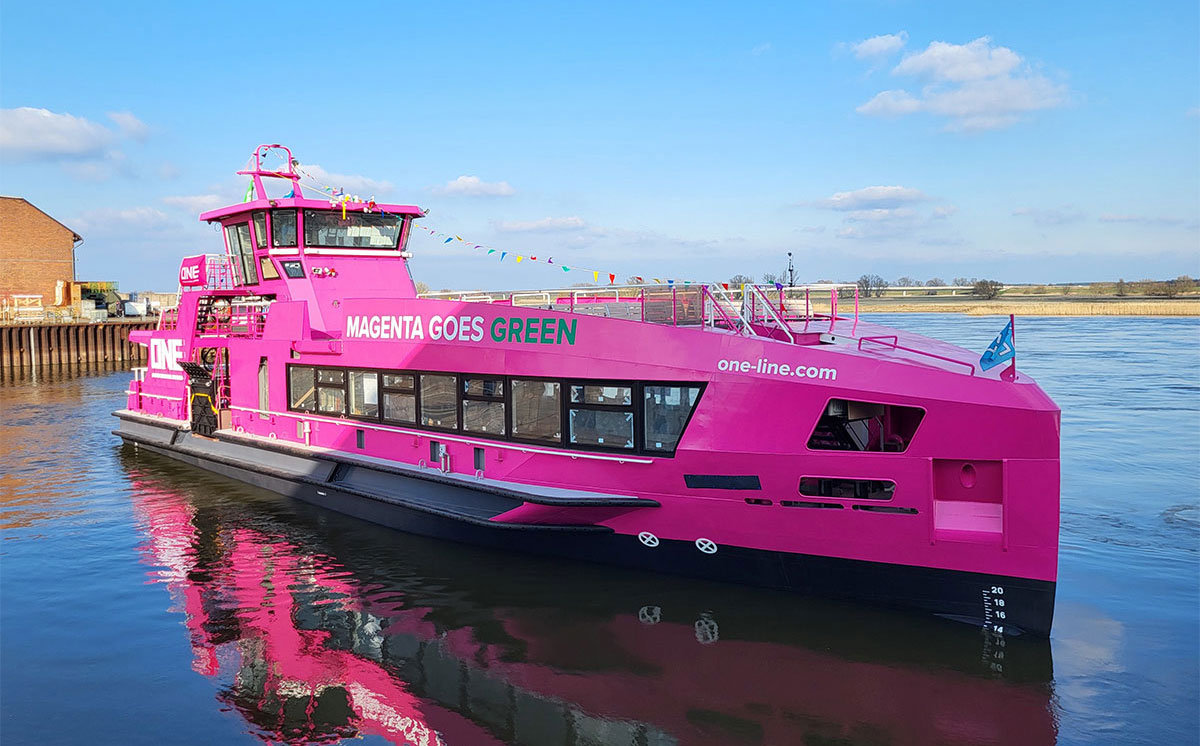

commuter-ferry-5-1st-vessel-floating

250 Passenger Commuter Ferry for City of Hamburg

NaValue Proj.N° 19-009

Client

  • HADAG

Main Characteristics

  • Passenger Commuter Ferry
  • Length: 33.40 m
  • Breadth: 8.00 m
  • Speed: 12 kts
  • Passengers: 250 persons
  • Propulsion: Diesel-electric, plug-In Hybrid
  • Redundant propulsion, 2 x eVSP 9
  • Hydrogen-FC ready incl. EU Approval
  • Ships under construction: 3 units
  • Delivery dates: 2024

Scope of Work

  • Engine Market and configuration study
  • Ship concept and general arrangement
  • Propulsion concept analysis, battery configuration
  • Hull form, power demand, manoeuvring capabilities
  • Weight and stability
  • Technical Specification
  • Exterior Styling and 3D visualization
  • Conceptual hydrogen integration and technical support and risk assessment during application for EU approval
  • Project management, site supervision, drawing approval
